NX-AH-01Aluminium Hardware

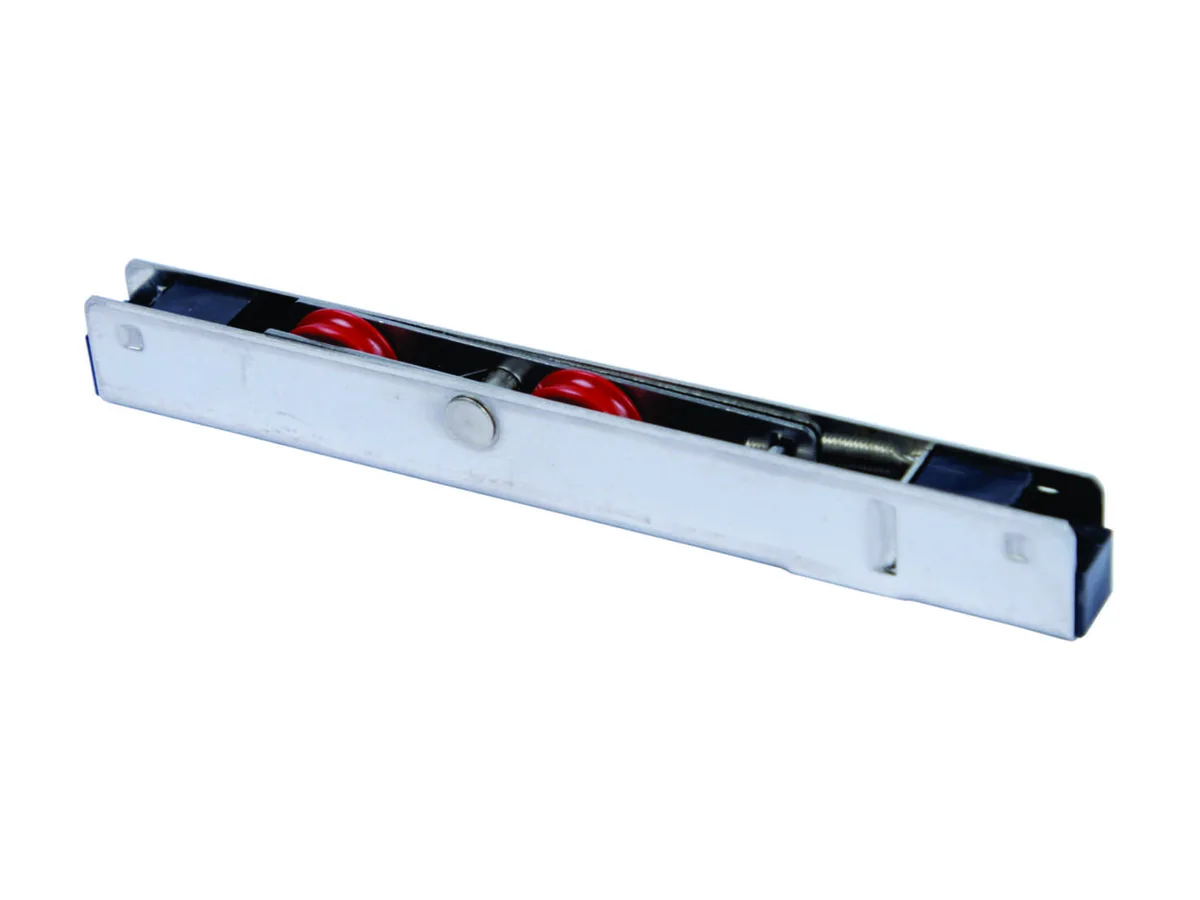

Sliding Double Wheel Roller (V Groove)
Two-wheel V-groove sliding carriage in an SS 430 body, rated to 80 kg per set.
- Material
- SS 430 body
- Rated load
- 80 kg
- MOQ
- 1000 pcs
Key features
- Two V-groove wheels for positive location on V-profile track
- Pressed SS 430 stainless steel body
- Rated to 80 kg per set
- Three body widths for 15 mm track sections
Prefer to talk? +91 89800 09744
Overview
A two-wheel sliding roller for aluminium window and door sashes running on V-profile track. The wheels are carried in a pressed SS 430 body that sits inside the sash bottom rail, spreading the sash load across two contact points so the panel moves without the drag that flat-bottom sashes develop over time. Supplied in three body widths to suit 15 mm track sections, and rated to 80 kg per set.
Features
- Two V-groove wheels for positive location on V-profile track
- Pressed SS 430 stainless steel body
- Rated to 80 kg per set
- Three body widths for 15 mm track sections
- Concealed fit inside the sash bottom rail
Applications
- Aluminium sliding windows
- Aluminium sliding doors
- Residential glazing
- Commercial glazing
Compatibility
- V-groove track
- 15 mm track sections
- Aluminium sliding sashes
Questions about this product
What sizes is the Sliding Double Wheel Roller (V Groove) available in?
It is available in 15x18 mm, 15x20 mm, 15x24 mm.
What load does the Sliding Double Wheel Roller (V Groove) carry?
It is rated to 80 kg per set. Specify against the weight of the glazed sash rather than the frame size.
What material is the Sliding Double Wheel Roller (V Groove) made from?
SS 430 body. Send us the exposure conditions if you want the grade confirmed for your project.
What is the minimum order quantity?
1000 pcs. Contact our team on +91 89800 09744 to discuss your requirement.
Technical specifications
- Size
- 15x18 mm / 15x20 mm / 15x24 mm
- Weight capacity
- 80 kg
- Material
- SS 430 body
- Wheel profile
- V groove
- Minimum order quantity
- 1000 pcs
