NX-AH-03Aluminium Hardware

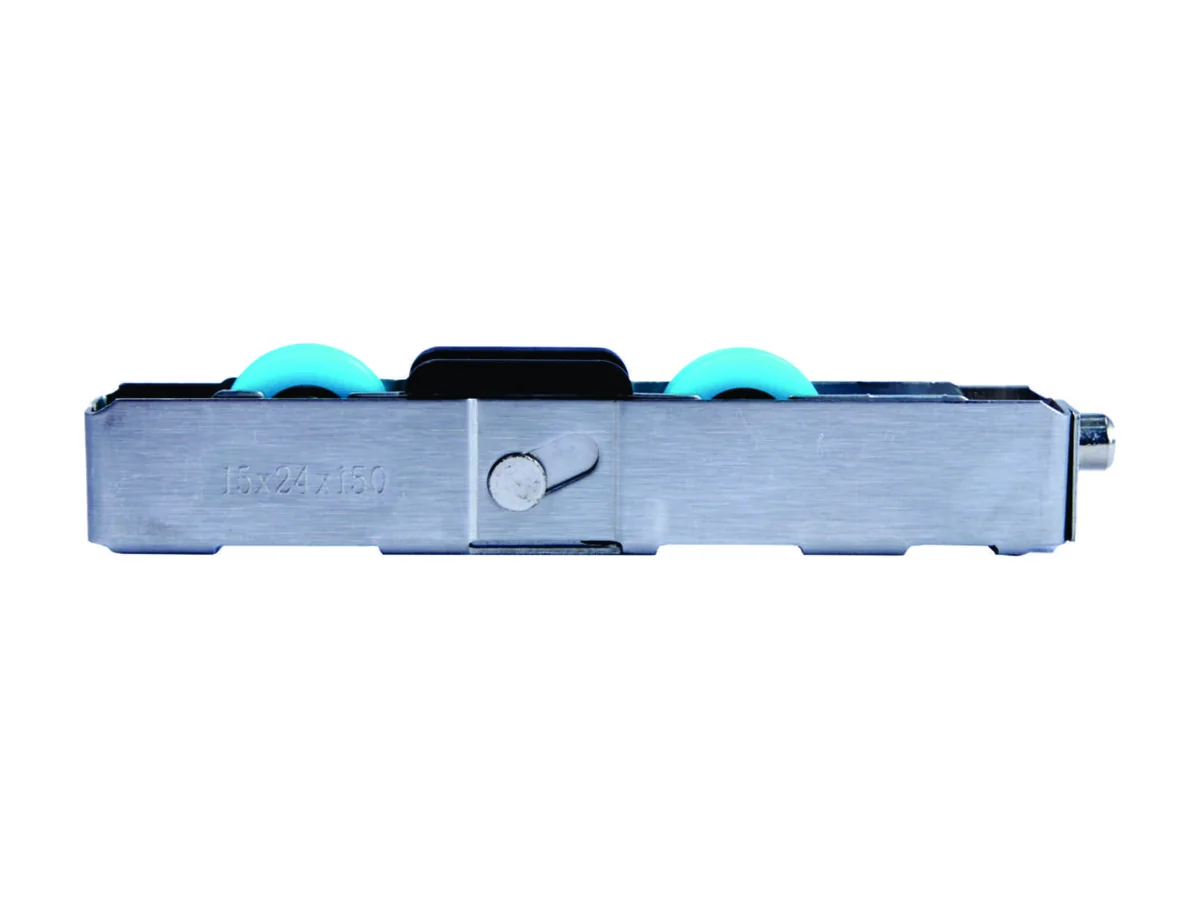

Two Wheel Bearing (Adjustable)
Height-adjustable two-wheel bearing carriage in SS 201, rated to 80 kg per set.
- Material
- SS 201 body
- Rated load
- 80 kg
- MOQ
- 2000 pcs
Key features
- Height adjustment after glazing, without removing the sash
- Bearing-mounted wheels for low rolling resistance
- SS 201 stainless steel body
- Rated to 80 kg per set
Prefer to talk? +91 89800 09744
Overview
A two-wheel bearing carriage with height adjustment, so the sash can be levelled after glazing without lifting the panel out. The adjustment screw is reachable from the sash face, which lets a fabricator correct for frame settlement or an out-of-square opening on site. Bearing-mounted wheels in an SS 201 body, rated to 80 kg per set.
Features
- Height adjustment after glazing, without removing the sash
- Bearing-mounted wheels for low rolling resistance
- SS 201 stainless steel body
- Rated to 80 kg per set
- Corrects for frame settlement and out-of-square openings
Applications
- Aluminium sliding windows
- Sites needing on-site sash levelling
- Residential glazing
- Retrofit and replacement work
Compatibility
- 15 mm track sections
- Aluminium sliding sashes
Questions about this product
What sizes is the Two Wheel Bearing (Adjustable) available in?
It is available in 15x18 mm, 15x20 mm, 15x24 mm.
What load does the Two Wheel Bearing (Adjustable) carry?
It is rated to 80 kg per set. Specify against the weight of the glazed sash rather than the frame size.
What material is the Two Wheel Bearing (Adjustable) made from?
SS 201 body. Send us the exposure conditions if you want the grade confirmed for your project.
What is the minimum order quantity?
2000 pcs. Contact our team on +91 89800 09744 to discuss your requirement.
Technical specifications
- Size
- 15x18 mm / 15x20 mm / 15x24 mm
- Weight capacity
- 80 kg
- Material
- SS 201 body
- Adjustment
- Height adjustable
- Minimum order quantity
- 2000 pcs
